Machine Parameters
| Model no. | YTR-800C |
| The maximum cutting board size | 170~800*3000mm |
| Cutting speed | 0.21-0.72m/min |
| Precision accuracy | 0.05mm |
| Transmission system | Precision ball screw&linear guide |
| Driving motor | Imported from Taiwan |
| Machine size | 4.2*1.2*2.2m(L*W*H) |
| Weight | 1700KGS |
| Power | 3.5KW |
| Power supply | Single phase, 220v, 50/60hz |
Applications

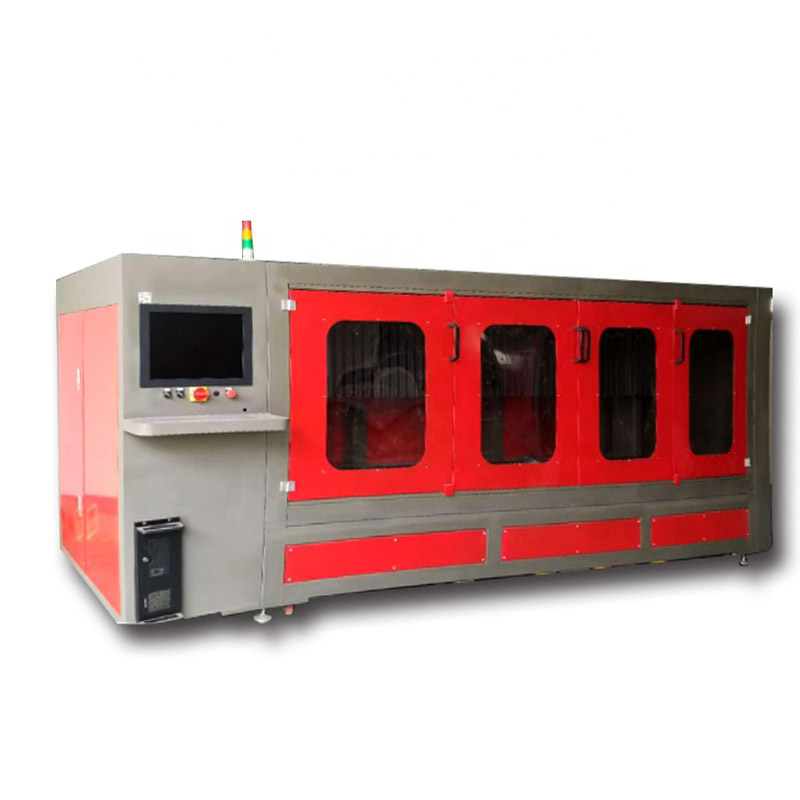

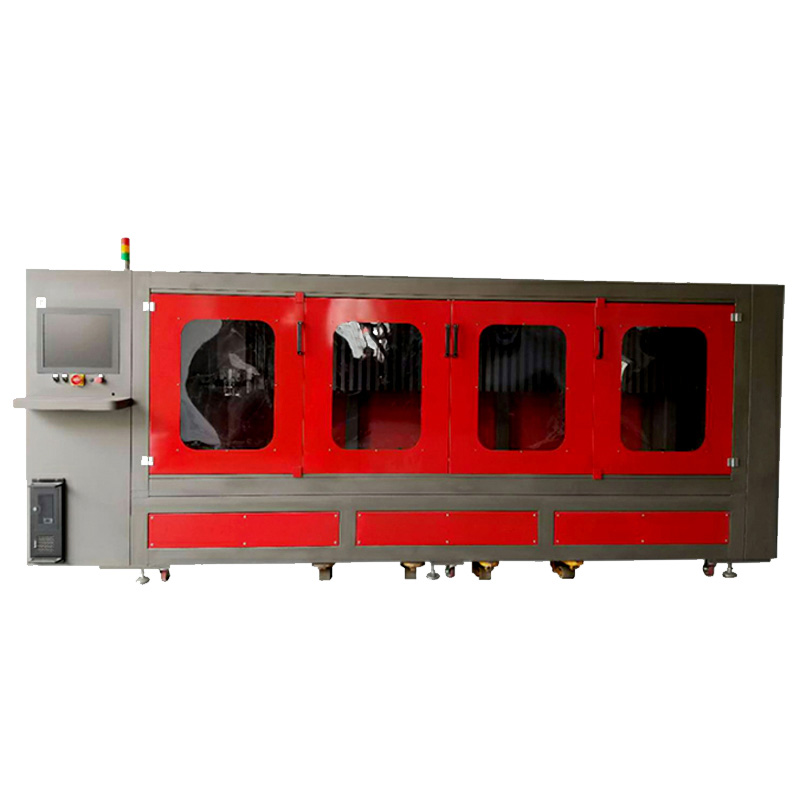

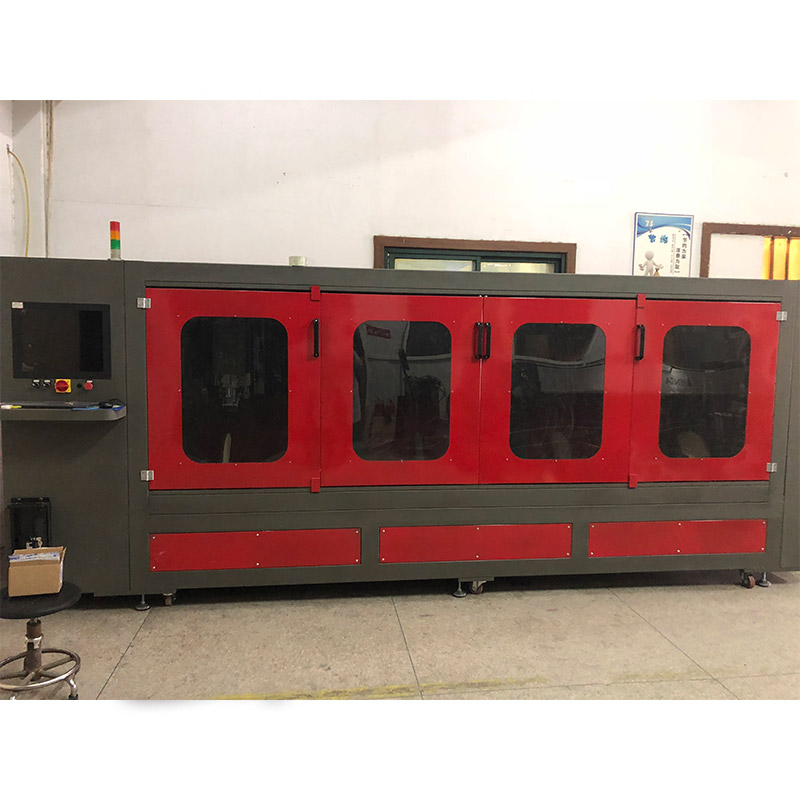

The CNC rotary router is a great help in field of rotary die making. The development of CNC technology makes the cutting of rotary die board more features: low energy consumption, high accuracy, high efficiency and easy operation
Features and Functions
Low cost machine, quickly to return investment.
Low consumption, two degrees of electricity per hour only
Low maintenance cost, milling cutter consumption only
Working environmental protection
Fully automatically drilling cut the installation hole, one-time to complete the rotary die cutting process
High rigidity machine bed with annealing process to ensure the accuracy
Fully closed design, isolation of dust, no pollution
