Machine Parameters
| Model No. | YW5010 |
| X-axis travel-length | 1000mm |
| Y-axis travel-length | 500mm |
| Moving speed | 10m/min |
| Max cutting thickness | 60mm |
| Positioning precision | 0.05mm |
| Max weight of table load | 100kg |
| Resolving power | 0.001 |
| Power | 380V/7.5KW(three-phase supply) |
| Overall dimensions(L*W*H) | 1000*1500*1100mm |
| Weight | 300kg |
| Model No. | YW5010 |
Applications

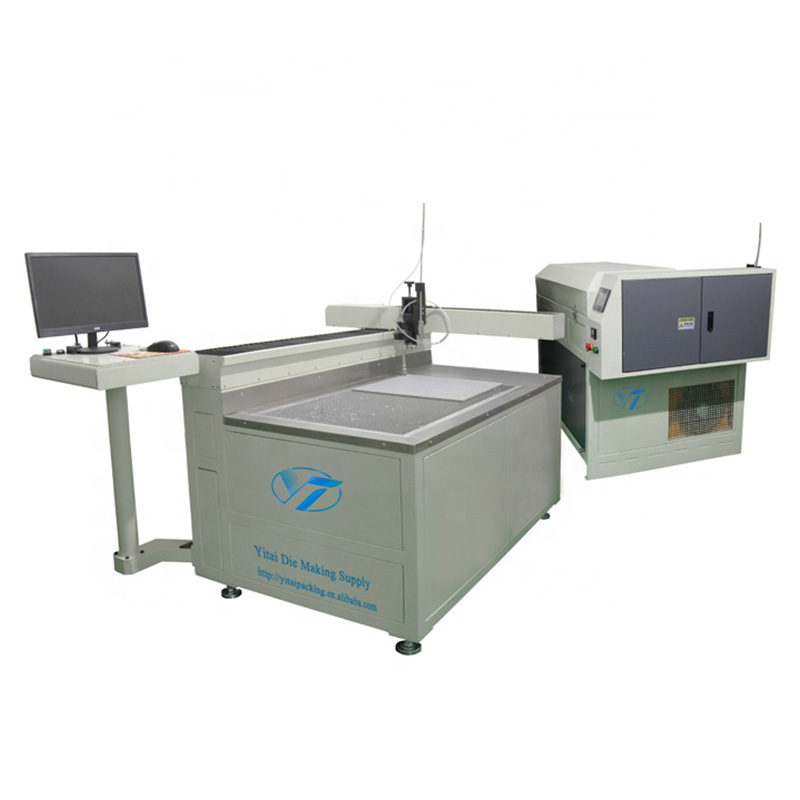

YW5010 water jet cutting machine is mainly used for cutting sponge, rubber, etc. The machine is very easy to operate, and it is friendly to the environment when working customer no need to spend much time for maintenance. It provides die makers with faster and more efficient die making service
Features and Functions
Quick response. there is no need to wait long time to start and run the machine
Can cut max 60mm sponge, 20mm rubber
Simple cutting line adjustment technology. Cutting software can be compatible with AutoCAD. CorelDraw. Editing path is very easy and convenient
All kinds of shapes for die making slot, cutting materials ejection rubber, Vulcan, sponge, foam.
The water beam is only 0. 13mm
Cutting speed up to 10m/minute
Easy maintenance and operation system
Friendly to environment, no pollution
Save labor time of the die making
Improvement for the beautiful outlook of cutting die
Low consumption cost-Only use water to cut
